Inside the plant devices you can specify how the digital signals will be displayed:

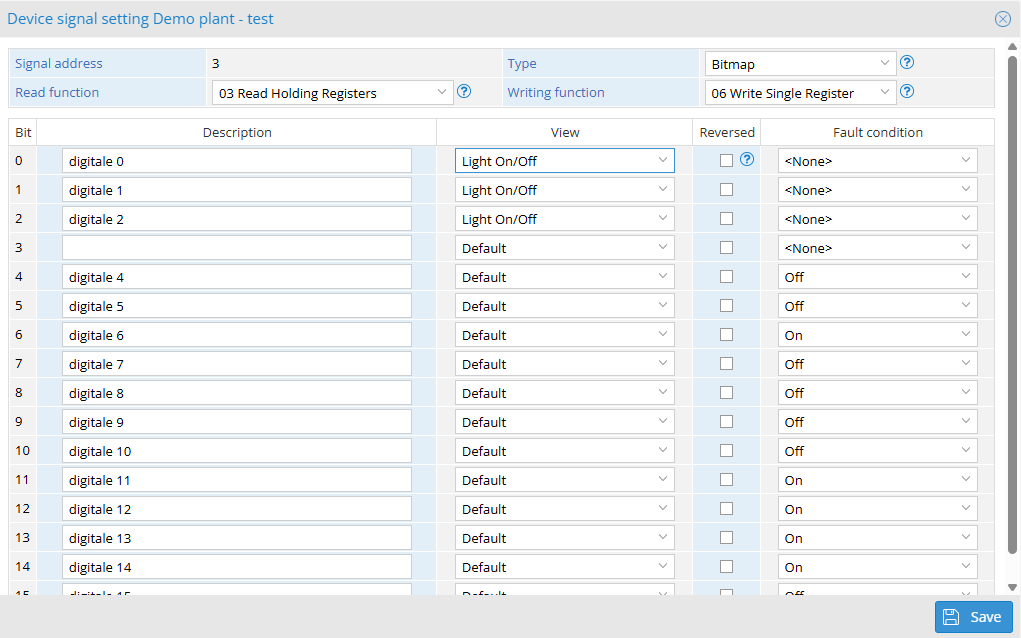

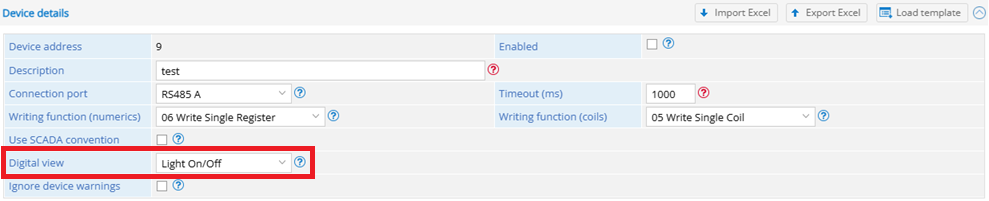

- Light ON/OFF: If bits are selected they will automatically inherit this display without requiring further configuration and for each signal a bulb will be displayed on or off depending on the state (0/1). It remains possible to set individual bits to “red on fault“, but you will need to configure them individually and specify the fault value for each.

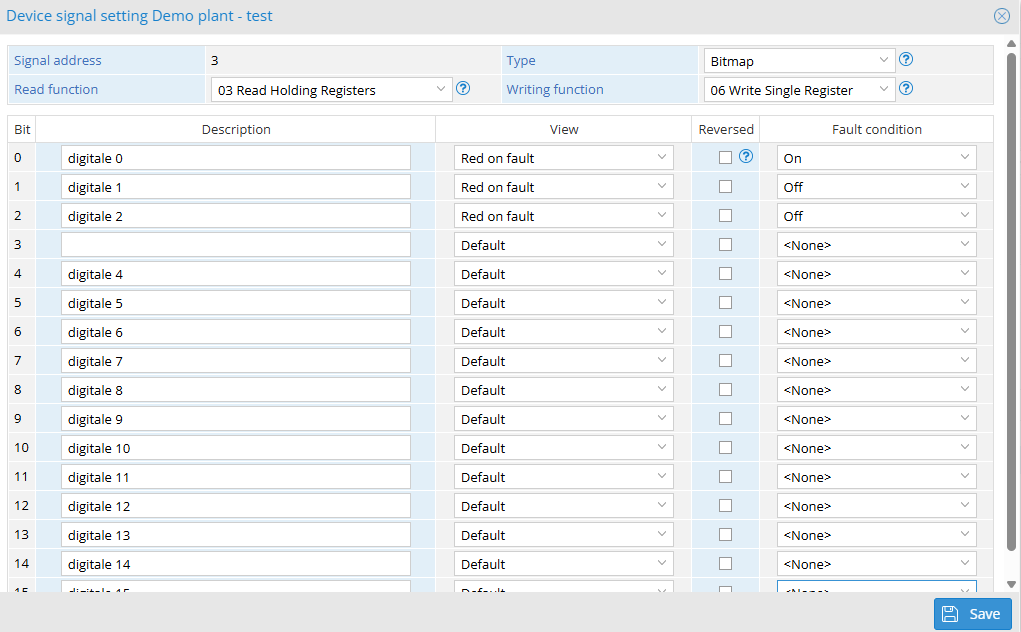

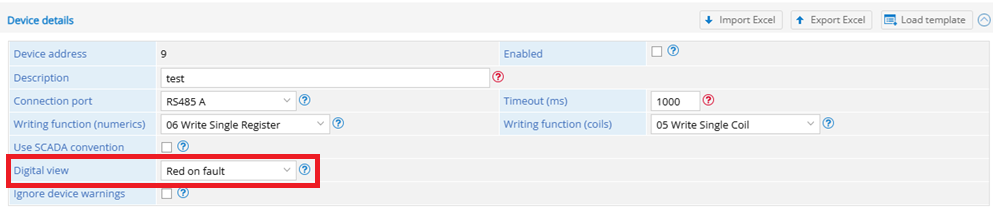

- Red on fault: if it is selected it is mandatory to specify for each bit which value represents the fault and the signal linked to the bit will be visible in red only when it is in a fault state. It remains possible to set individual bits to “light ON/OFF”, but you will need to configure them individually.
