Automations between plants are based on a source and destination signal. The condition on the source signal set during the creation of the automation will trigger the preset operation on the destination signal.
New: through this button it will be possible to create a new automation.

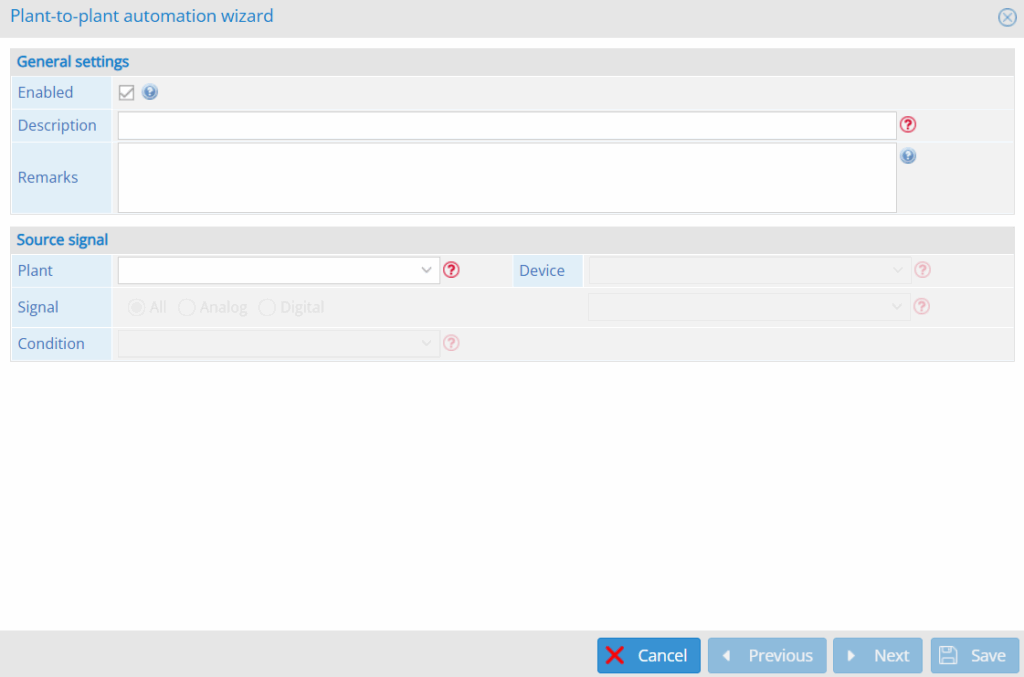

General settings:
- Enabled: flag to enable or disable automation.
- Description: description of what automation will do.
- Remarks: Information notes for automation are possible.
Source Signal:
- Plant: selection of the desired plant.
- Device: selection of the desired device.
- Signal: you can filter signals between analog and digital to make it easier to find the desired signal.
- Condition: Select the condition that will trigger automation.

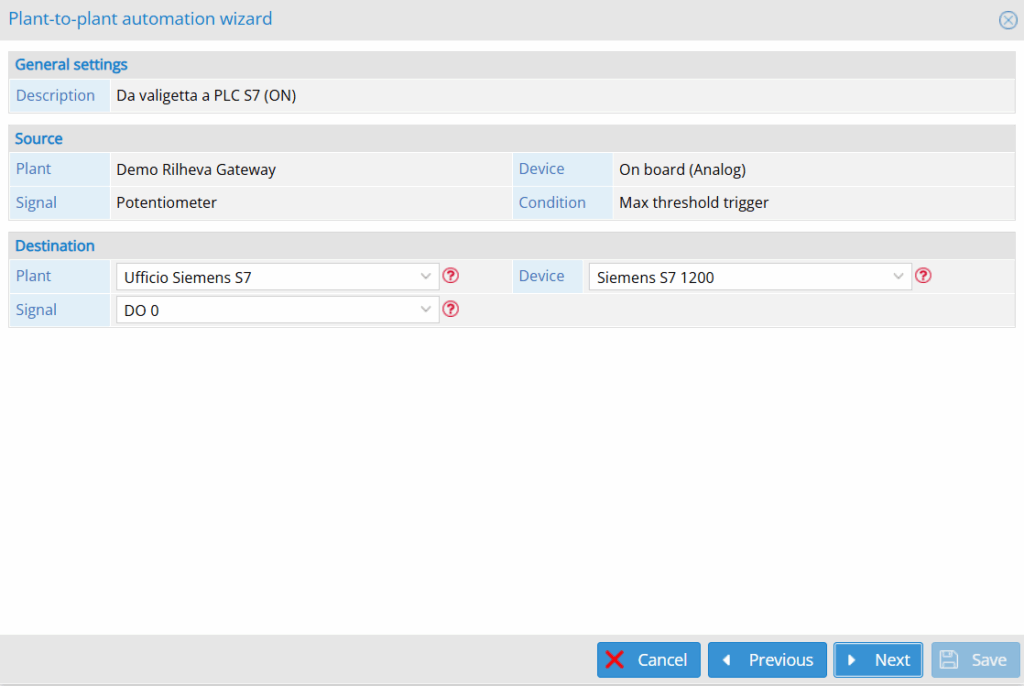

Once you press the “Next” button, the following screen will appear:
Destination:
- Plant: selection of the desired plant.
- Device: selection of the desired device.
- Signal: selection of the desired signal.

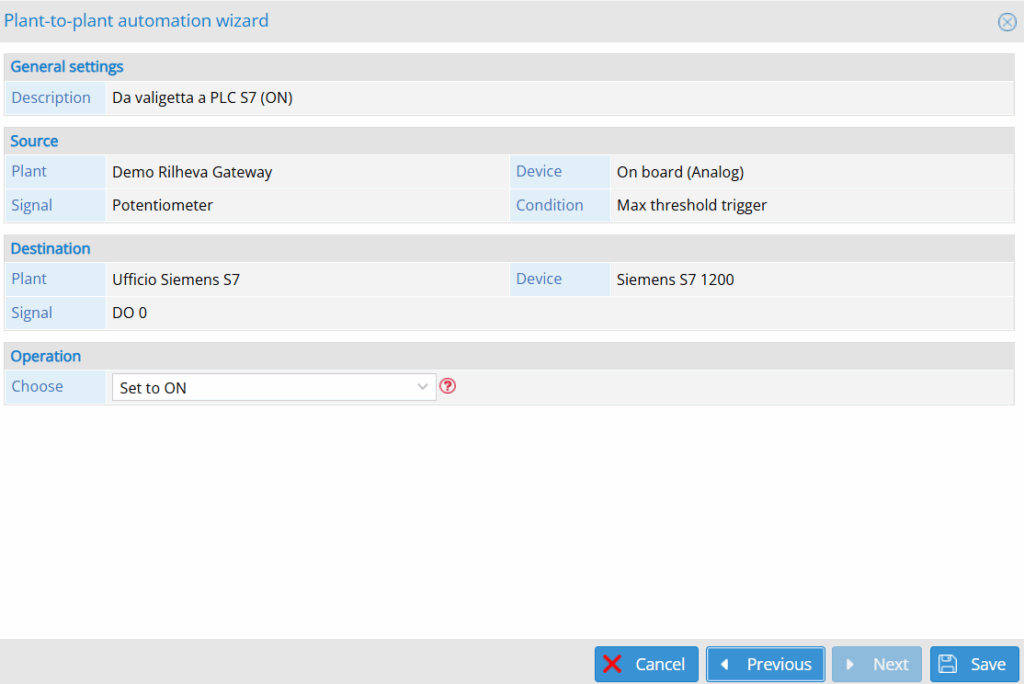

Once you press the “Next” button, it will be enough to set only the operation and then finish the creation of the automation:

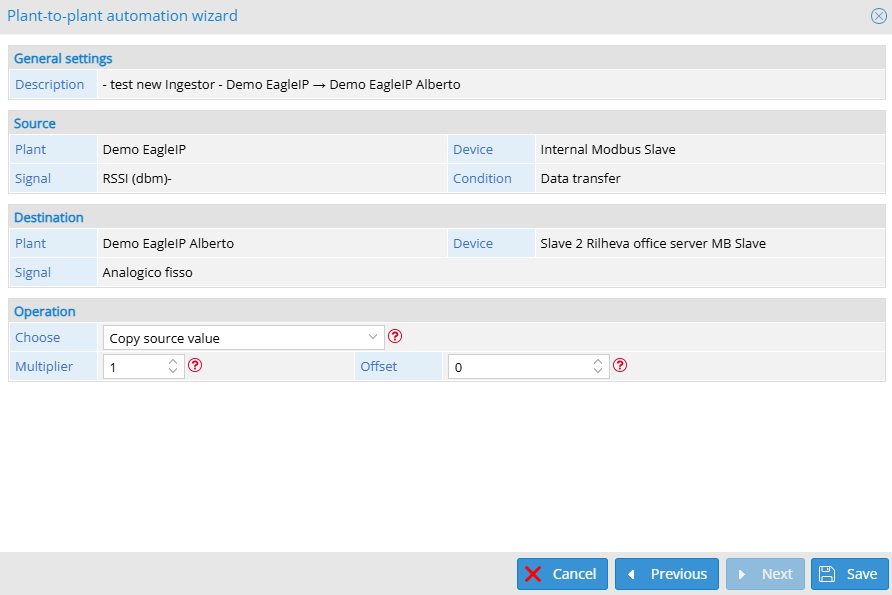

Operation:
- Choose: you can choose the type of operation to be performed according to the target signal type (Pulse, ON value and OFF value for digital, copy source value or set value for analog).
- Multiplier: multiplier that will be applied to the read value.
- Offset: offset added to read value * multiplier.

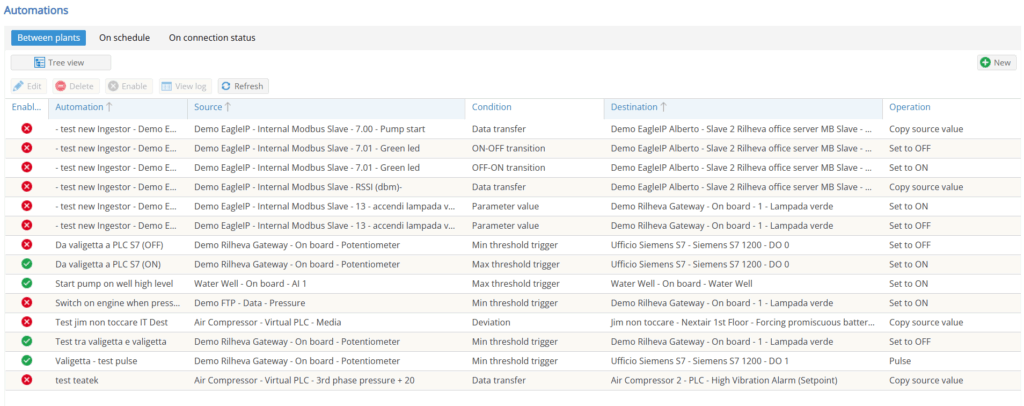

Tree view: you can select the way to display the list of automations.
Enable: you can choose which automations to enable and which to disable.
View logs: you can see all the activities of the automation.
Update: Updates the list of automations.
